F127
Electric Panel Radiator
The Atlantic F127 electric panel radiator utilises convection heating to quickly warm any room and with a simple cosmetic design can fit into any home deco design with ease.
Equipped with easy to use heating controls, the Atlantic F127 electric panel radiator offers the user a wide range of features that include 24 hour, 7 days a week programming allowing the F127 radiator to cover a multitude of home living lifestyles depending on the user's needs.
Featuring open window detection which allows the F127 panel radiator to monitor its energy usage and with a high precision thermostat the Atlantic F127 electric panel radiator can offer the end user up to 25% energy savings.
With its simple design and easy fixings, the Atlantic F127 electric panel radiator has been designed to be easily fitted letting you install a high volume of these electric panel radiators with ease.
Click here to contact your local area sales manager to find out more
Key Features
Easy to install with energy efficient and smart open window technology controls the Atlantic F127 electric panel radiator has been designed with you in mind.
Featuring a range of built in easy to use heating controls, the F127 electric panel radiator offers home comfort and a host of energy saving features for the user to benefit from.
Easy to program 24 hours 7 days a week system which lets the panel radiator tune to the user's lifestyle.
Class II and IP24 protection with dual electric insulation for ultimate safety
Easy to install with energy efficient and smart open window technology controls the Atlantic F127 electric panel radiator has been designed with you in mind.
Featuring a range of built in easy to use heating controls, the F127 electric panel radiator offers home comfort and a host of energy saving features for the user to benefit from.
High-precision electronic thermostat
Up to 25% energy savings
Open window detection
Easy to install with energy efficient and smart open window technology controls the Atlantic F127 electric panel radiator has been designed with you in mind.
Featuring a simple design and easy fixings, the F127 electric panel radiator has been designed to allow high volume quick and easy installations.
Ergonomic LCD digital controls
2 modes: Manual/Programmable 24 hour 7 day timer
Easy to install: H-shaped vertical support, which can also be used as an installation template

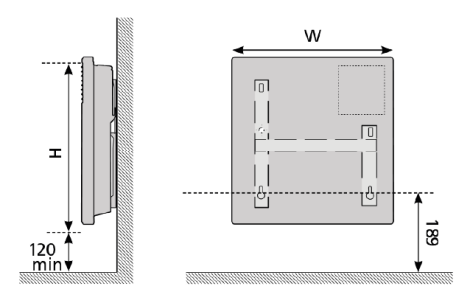

F127 Technical Data
| Output (W) | Depth (MM) | Width (MM) | Height (MM) | Current (A) | Weight (KG) | A | B1 | B2 | Model | Wiring Location |
|---|---|---|---|---|---|---|---|---|---|---|
| 500 | 102 | 370 | 453 | 2.1 | 3.8 | 195 | 256 | 158 | AH500101 | Bottom middle |
| 750 | 102 | 370 | 453 | 3.2 | 3.8 | 195 | 256 | 158 | AH500106 | Bottom middle |
| 1000 | 102 | 447 | 453 | 4.3 | 4.2 | 269 | 256 | 158 | AH500103 | Bottom middle |
| 1250 | 102 | 517 | 453 | 5.3 | 4.4 | 269 | 256 | 158 | AH500107 | Bottom middle |
| 1500 | 102 | 590 | 453 | 6.4 | 5.5 | 343 | 256 | 158 | AH500104 | Bottom middle |
| 2000 | 102 | 740 | 453 | 8.5 | 6.8 | 491 | 256 | 158 | AH500105 | Bottom middle |
| Output (W) |
|---|
| 500 |
| 750 |
| 1000 |
| 1250 |
| 1500 |
| 2000 |
Inside your radiator
- Air outlet wings
- Control unit
- Front panel
- Heating element
- Room temperature sensor
- Control panel
F127 downloads
FAQs
Your F127 questions answered
ErP is the European directive stating that all electric radiators which are manufactured for sale in the EU after 1st January 2018 must comply with a minimum efficiency standard. A reduction in emissions is achieved with integral room temperature controls which have day or week timers. Additional reductions achieved with: temperature control with presence/open window detection, app distance control, adaptive start control to suit user lifestyle.
A pilot wire can allow a towel rail to be connected to a wider heating system where a pilot wire facility is included.
It is a pilot wire for signalling purposes, it is used to connect heaters together to create heating zones. It must not be connected to Earth.
In the F127 operating manual, expert mode, there is a facility to lock the heaters to prevent tampering.
